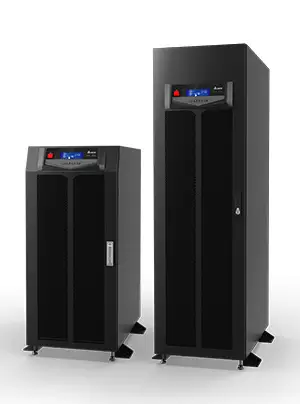

Delta HPH Series UPS, Three Phase, 60/80/100/120 kW
Best-in-class power protection with maximum power and cost efficiency
The Ultron HPH is a true online double-conversion UPS offering the best-in-class combination of maximum available power, unbeatable energy efficiency and superior power performance for small data centers and other mission critical applications. With fully rated power (kVA=kW), the Ultron HPH provides maximum available power without de-rating the UPS. Thanks to the three level IGBT topology for both PFC (power factor correction) and inverter, the Ultron HPH features up to 96% AC-AC efficiency. Delta’s advanced digital PFC control also contributes low iTHD < 3% and high input power factor > 0.99 resulting in significant TCO (Total Cost of Ownership) savings. Facilitating increased availability and power performance, the Ultron HPH is an ideal solution for protecting your mission critical operations.
Best-in-Class Power Performance and Efficiency
Fully rated power (kVA=kW) for maximum power availability
Leading AC-AC efficiency up to 96 % saves energy costs
Low harmonic pollution (iTHD < 3 %) and high input power factor (> 0.99) reduce upstream investment costs
Assured Reliability
Wide input voltage range allows the UPS to operate in harsh electrical environments and extends battery life
DSP based technology enables reduction in the number of electronic components to lower failure rate
Redundant auxiliary power and static switch control circuit* design prevents single point of failure
* Applied for models HPH-100/120K
Watch-dog design of dual auxiliary power circuit to eliminate single-point failure to ensure reliability
Built-in manual bypass ensures continuous power to the load even if the UPS is under maintenance
Greater Flexibility
A wide choice of configurations, such as N+X redundancy, and hot stand-by
Adjustable charging current and battery voltage meet different battery configuration requirements
Flexible battery configuration optimizes battery investment
Superior Serviceability and Management
Swappable interior architecture and front access servicing enables quick and easy maintenance*
Multi-connectivity interface supports remote UPS monitoring and management
Model – HPH-60K / HPH-80K / HPH-100K / HPH-120K
Power Rating
- HPH-60K – 60 kVA / 60 kW
- HPH-80K – 80 kVA / 80 kW
- HPH-100K – 100 kVA / 100 kW
- HPH-120K – 120 kVA / 120 kW
- Parallel Configuration – Up to 4 Units
Input
- Nominal Voltage – 380/ 400/ 415 Vac, 3P4W+PE
- Voltage Range – 332~477 Vac (full load) 228~332 Vac (with derating from 63~100 % load)
- Frequency – 40~70 Hz
- Total Harmonic Distortion (THDi) – < 3 %
- Power Factor – > 0.99 (full load)
Short Circuit Withstand Rating
- HPH-60K – 15 kA
- HPH-80/100/120K – 22 kA
Output
- Voltage – 380/ 400/ 415 Vac, 3P4W+PE
- Voltage Regulation – ±1 %
- Frequency – 50/60 ± 0.05 Hz
- Total Harmonic Distortion (THDv) – ≤ 2 % (Linear Load)
- Power Factor – 1.0
- Overload Capability – ≤ 125 %: 10 mins
- 126~150 %: 1 min – > 150 %: 1 sec
- Current Crest Ratio – 3:1
Efficiency
- Online Mode – > 96 %
- ECO Modek – Up to 99 %
Battery
- Battery Type – VRLA/ Lithium-ion
- Nominal Voltage – ±240 Vdc
- Quantity – 32~46 pcs(1)
Charge Current
- HPH-60K – 10 A
- HPHH-80K – 15 A
- HPH-100/120K – 20 A
- Max. Charger Current with Optional Charger Board
- HPH-60/80K – 20 A
- HPH-100/120K – 40 A
Communication Interface
- Display – LCD Screen with LED Indicators
- Port – Smart slot x1, Mini slot x1, Parallel port x2, RS-232 x1, Charger detection port x1, Input dry contact x2, Output dry contact x6, USB x1, REPO port x1, External battery temperature sensing port x2
- Emergency Power Off – Yes
Physical
- Dimensions (W x D x H)
- HPHH-60/80K – 520 x 800 x 1175 mm
- HPH-100/120K – 520 x 800 x 1760 mm
Net Weight
- HPH-60K – 186.5 kg
- HPH-80K – 191 kg
- HPH-100/120K – 312 kg
- Packing Dimensions (W x D x H)
- HPHH-60/80K – 685 x 1003 x 1337 mm
- HPH-100/120K – 720 x 994 x 1952 mm
Packing Weight
- HPH-60K – 220.5 kg
- HPH-80K – 225 kg
- HPH-100/120K – 388 kg
Environment
- Operating Temperature – 0 to 45 ˚C(2)
- Humidity – 5~95 % (non-condensing)
- Altitude – 0~1,000 m (without derating)
- Storage Temperature – -20 to +50 °C
- Ingress Protection – IP20
Conformance
- Safety – CE, IEC
- EMC – IEC 62040-2
- Performance – IEC 62040-3
- Sustainability – RoHS, REACH
Features
- Backfeed Protection – Standard
- Cold Start Function – Standard
- Synchronized Multiple Bus (SMB) – Standard
- Advanced Power Walk-in for Generator – Option
- Dual Input – Option
