Description

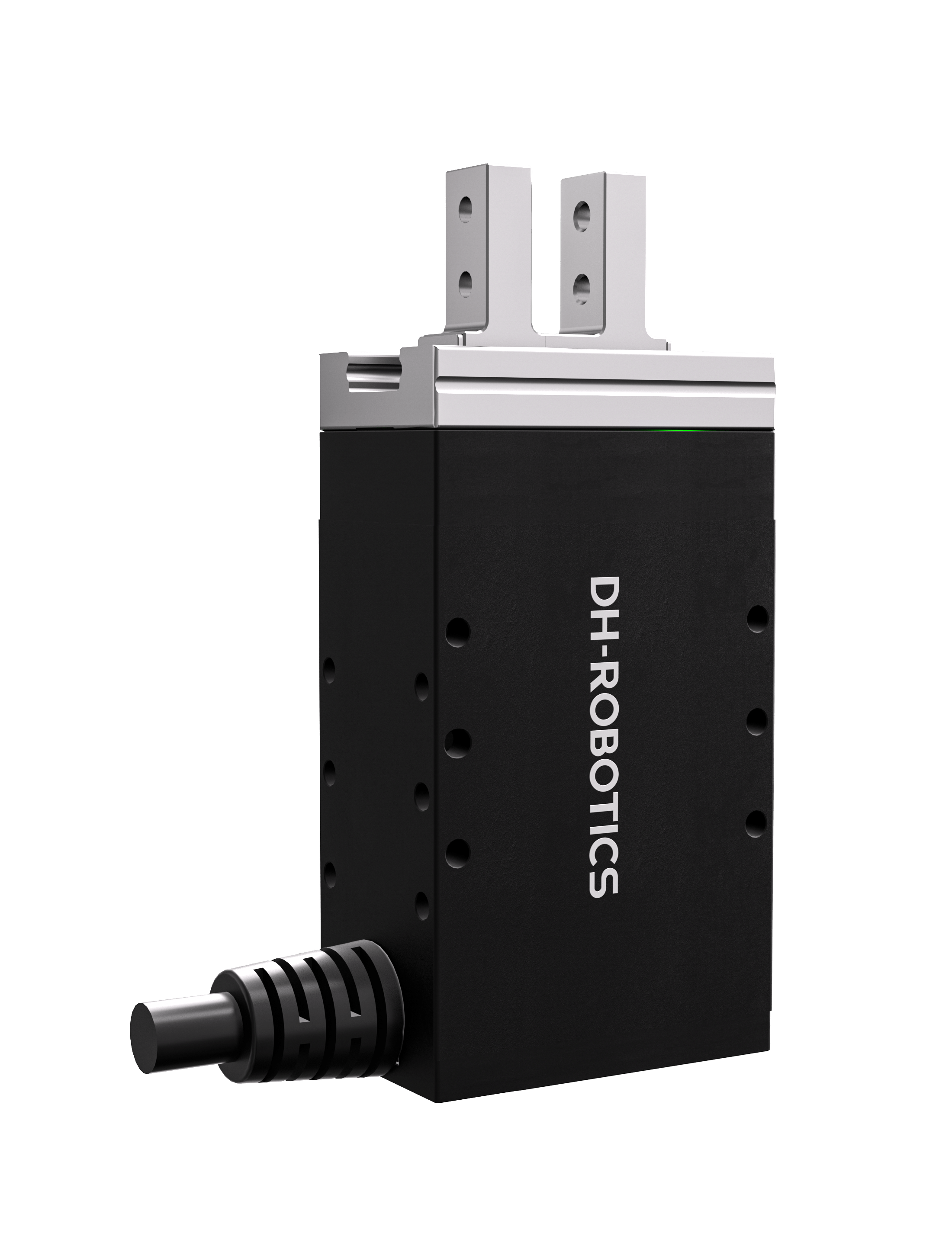

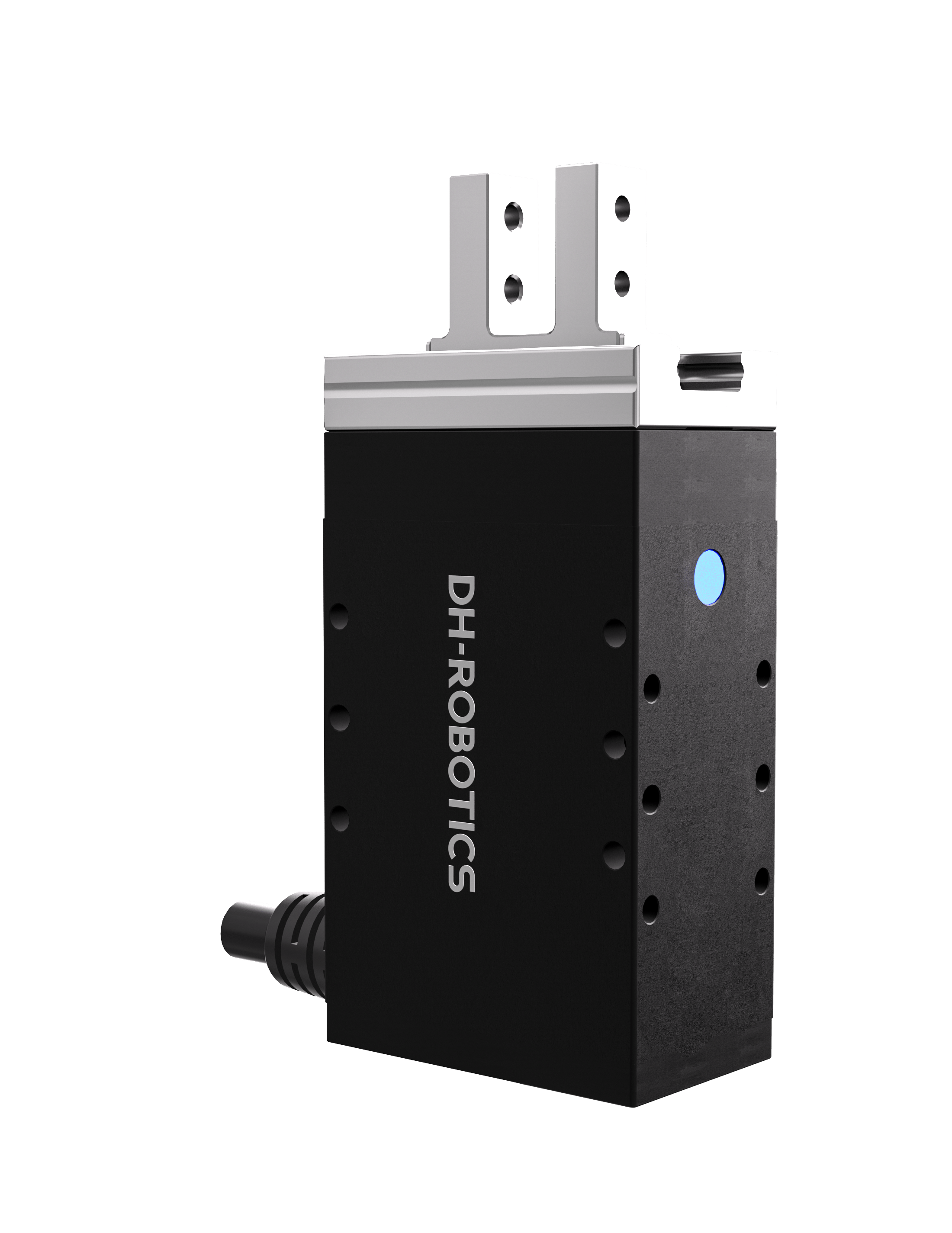

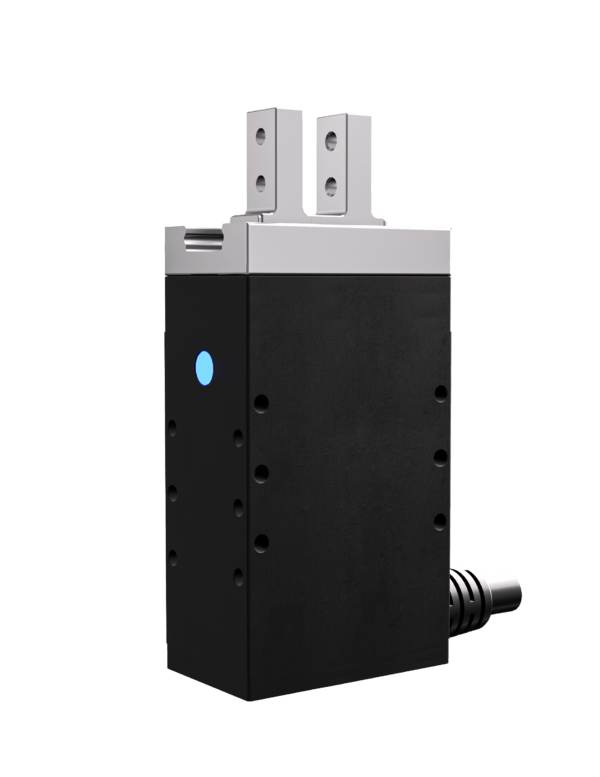

PGSE-15-7
| Gripping force (per jaw) | 6–15 N |
| Stroke | 7 mm |
| Recommended workpiece weight | 0.25 kg |
| Opening/Closing time | 0.15 s / 0.15 s |
| Noise emission | < 50 dB |
| Weight | 0.15 kg |
| Driving method | Precise planetary gears + Rack and pinion |
| Size | 85.6 mm × 38 mm × 23.2 mm |
| Communication interface | Modbus RTU (RS485), Digital I/O |
| Rated voltage | 24 V DC ± 10% |
| Rated current | 0.15 A |
| Peak current | 0.8 A |
| IP class | IP 40 |
| Recommended environment | 0~40°C, under 85% RH |
| Certification | CE, FCC, RoHS |
