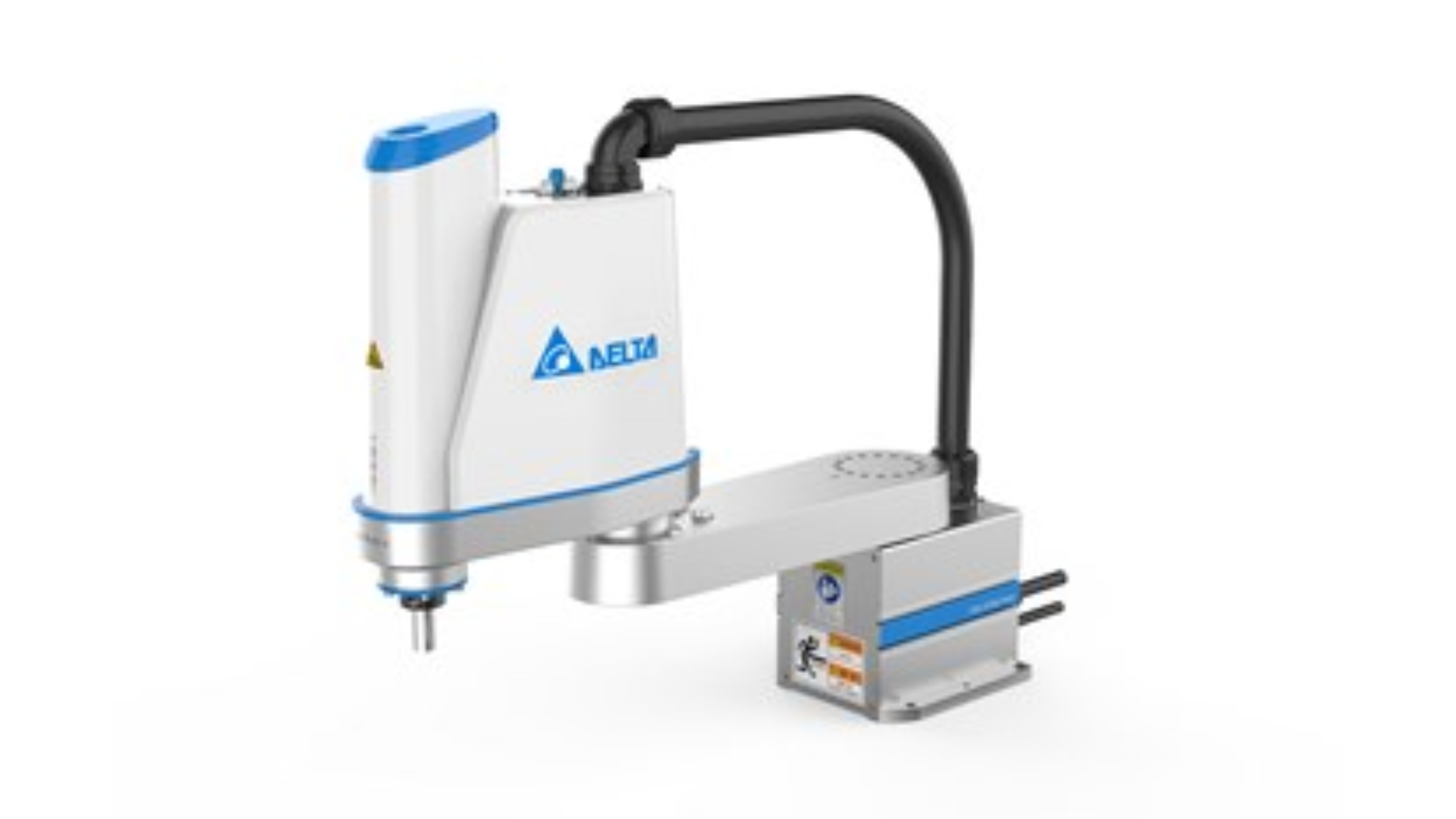

Delta SCARA – DRS50L3SS2 Series

Delta’s SCARA robots can easily integrate with control units and peripheral components to form highly integrated robot workstations. They can be applied in a wide range of industries including consumer electronics, electrical /electronics, rubber and plastic, metal fabrication and for processes such as screw driving, dispensing, assembly, load and unload, soldering, transporting and packaging .

When matched with peripheral devices including servo systems, machine vision systems and linear modules, the highly flexible and integrated Delta SCARA not only satisfies both single devices and workstation applications, but also enables modularized production lines and multi-products production with consistently good quality.

Delta SCARA can be easily applied to production automation for higher flexibility in achieving smart and efficient production, and improving productivity, quality, and labor efficiency.

Categories: ,
  • Description
  • Specifiations
  • Application
  • Downloads

Description

No description available.

Specification

Model DRS50L3SS2BN005
Number of Axes 4
Mounting Table-top
Arm Length 500 mm
Rated / Max. Payload 1 kg / 3 kg
Maximum Speed J1+J2: 6,400 mm/s
J3: 1,300 mm/s
J4: 2,900°/s
Range of Motion J1: ±110°
J2: ±148°
J3: 150 mm
J4: ±360°
Standard Cycle Time* 0.45s
Repeatability J1+J2: ±0.01 mm
J3: ±0.01 mm
J4: ±0.01°
Rated Force (J3) 100 N
Moment of Inertia Rated: 0.0091 kg•m²
Max: 0.075 kg•m²
User Wiring 15 Pin D-Sub, RJ45 (CAT 5e)
User Tubing ø4 mm × 2, ø6 mm × 1
Weight (without controller) 18 kg
Controller DCS-1P00

Application Scenarios

Insertion

Insertion

Assembly

Assembly

Glue-dispensing

Glue-dispensing

Soldering

Soldering

Load and unload

Load and unload

Inspection

Inspection

Product PDFs

Description

Model DRS50L3SS2BN005
Number of Axes 4
Mounting Table-top
Arm Length 500 mm
Rated / Max. Payload 1 kg / 3 kg
Maximum Speed J1+J2: 6,400 mm/s
J3: 1,300 mm/s
J4: 2,900°/s
Range of Motion J1: ±110°
J2: ±148°
J3: 150 mm
J4: ±360°
Standard Cycle Time* 0.45s
Repeatability J1+J2: ±0.01 mm
J3: ±0.01 mm
J4: ±0.01°
Rated Force (J3) 100 N
Moment of Inertia Rated: 0.0091 kg•m²
Max: 0.075 kg•m²
User Wiring 15 Pin D-Sub, RJ45 (CAT 5e)
User Tubing ø4 mm × 2, ø6 mm × 1
Weight (without controller) 18 kg
Controller DCS-1P00
