Description
| No. | Name | Quantity | Remark | Standard / Optional |
|---|---|---|---|---|
| 1 | Dobot Robot | 1 | Works with DOBOT CR3/E6/MG400 | Optional |
| 2 | Vision Kit | 1 | Includes Industrial Camera / Prime Lens / Light Source / Camera Stand | Optional |
| 3 | Conveyor Belt Kit | 1 | Includes Conveyor Belt Module/ Feeding Module/ Encoder (can be purchased exclusively) | Standard |
| 4 | PLC System Module | 1 | Includes Siemens 1200 Series/ HMI Touch Screen | Optional |
| 5 | Universal Training Platform | 1 | Mini Vacuum Source – Air Pressure Range | |
| 1 | Function Plate Storage Box – For storing track plate, standard inspection plate and mobile phone model location plate and more | |||
| 1 | Guide Assembly Plate – Includes fixed base | |||
| 1 | Button Control Box – Includes the start, stop, reset and emergency stop button | Standard | ||
| 1 | LED Status Indicator – Includes buzzer, color changes between red, green and yellow | |||
| 1 | Electrical Control Box – Includes electrical parts (for distribution wiring) | |||
| 1 | Tool Box – Includes spare parts, workpieces, suction cup, calibration needle and other tools | |||
| 1 | Aluminum Base – 600 mm * 900 mm |

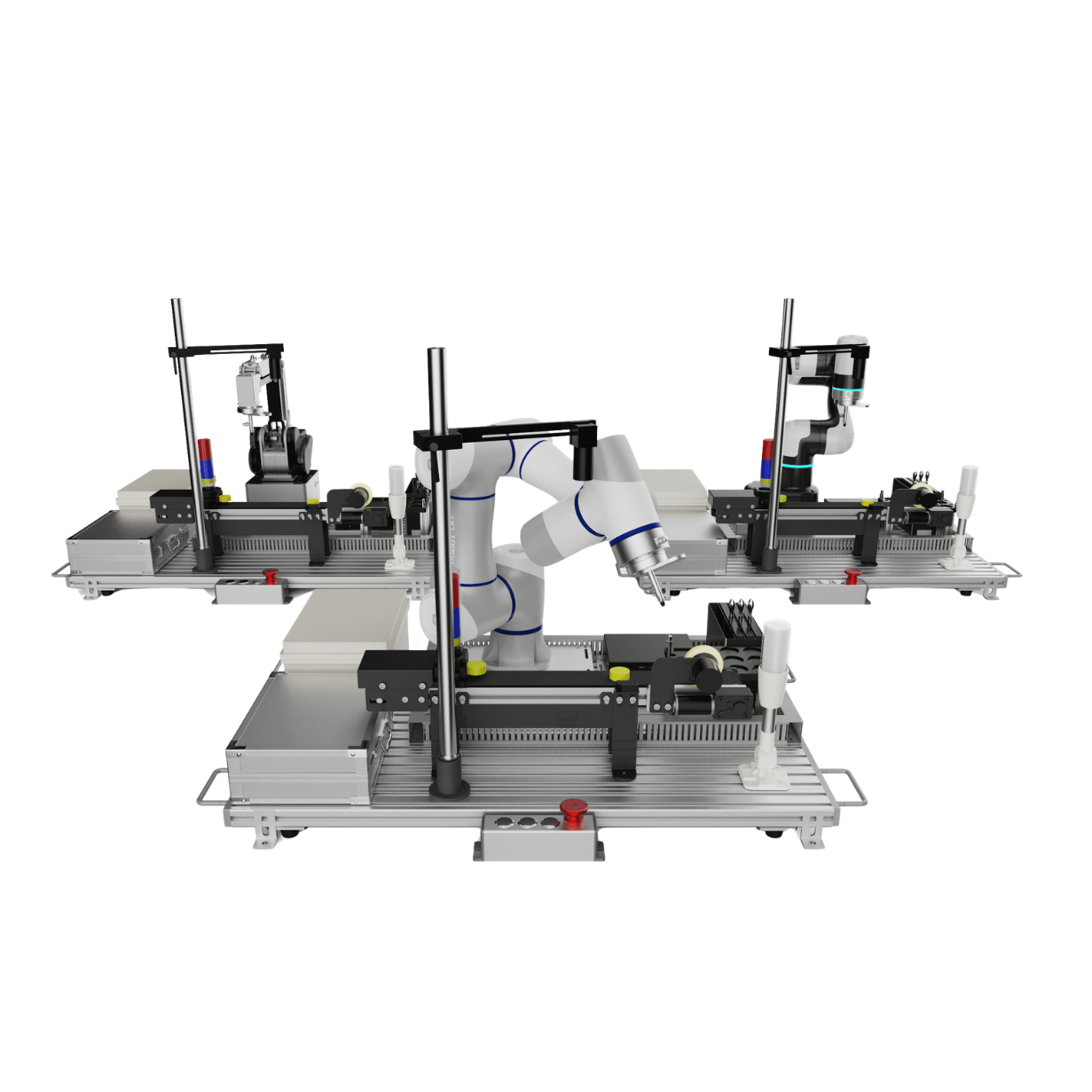

| Collaborative Robot Universal Training Platform | |
|---|---|
| Model | DT-BE-R-17 |
| Voltage | 100 ~ 240V AC, 50/60Hz |
| Full Load Current | 5A (MG400,E6) 10A (CR3) |
| Rated Short Circuit Current | 18A |
| Total Power | Max 500W (MG400,E6) 800W (CR3) |
| Weight | 30 kg |
| Size | 900 mm × 600 mm × 211 mm |
| Box Dimensions | 1118 mm × 718 mm × 275 mm |
| Power Consumption | 20W |
| Mini Vacuum Source Noise | 65dB |
| Dimensions | 163 mm × 143 mm × 53 mm |
| Conveyor Belt Kit | |
|---|---|
| Model | DT-BE-R-16 |
| Dimensions | 583 ± 8 mm × 115 mm × 180 ± 5 mm |
| Voltage | 100 ~ 240V AC / 24V DC |
| Weight | 5 KG |
| Total Power | Max 75W |
| Full Load Current | 3A |
| Operating Load | 3 KG |
| Effective Carrying Length | 400 mm |
| Rated Speed | 2.25 m/min |
| Control Mode | I/O Control |
| Encoder | Incremental Encoder, Resolution Ratio: 1000 P/R, Diameter: Ø40 mm |
| PLC System Module | |
|---|---|
| Model | DT-BE-R-15 |
| Weight | 3.5 KG |
| Voltage | 24V DC |
| Total Power | Max 75W |
| Full Load Current | 3A |
| Size | 335 mm × 270 mm × 235 mm |
| HMI Screen Size | 7.0 inches |
| Resolution | 800 × 480 |
| CPU | 1212C DC/DC/DC |
| Working Storage | 75 KB |
| Loading Storage | 2 MB |
| PLC High Speed Counter | 4 |
| Integrated I/O | DI × 8, DO × 6, AI × 2 |
| Extensibility | Signal Board (SB) ×1, Signal Module (SM) ×2, Communication Module (CM) ×3 |
