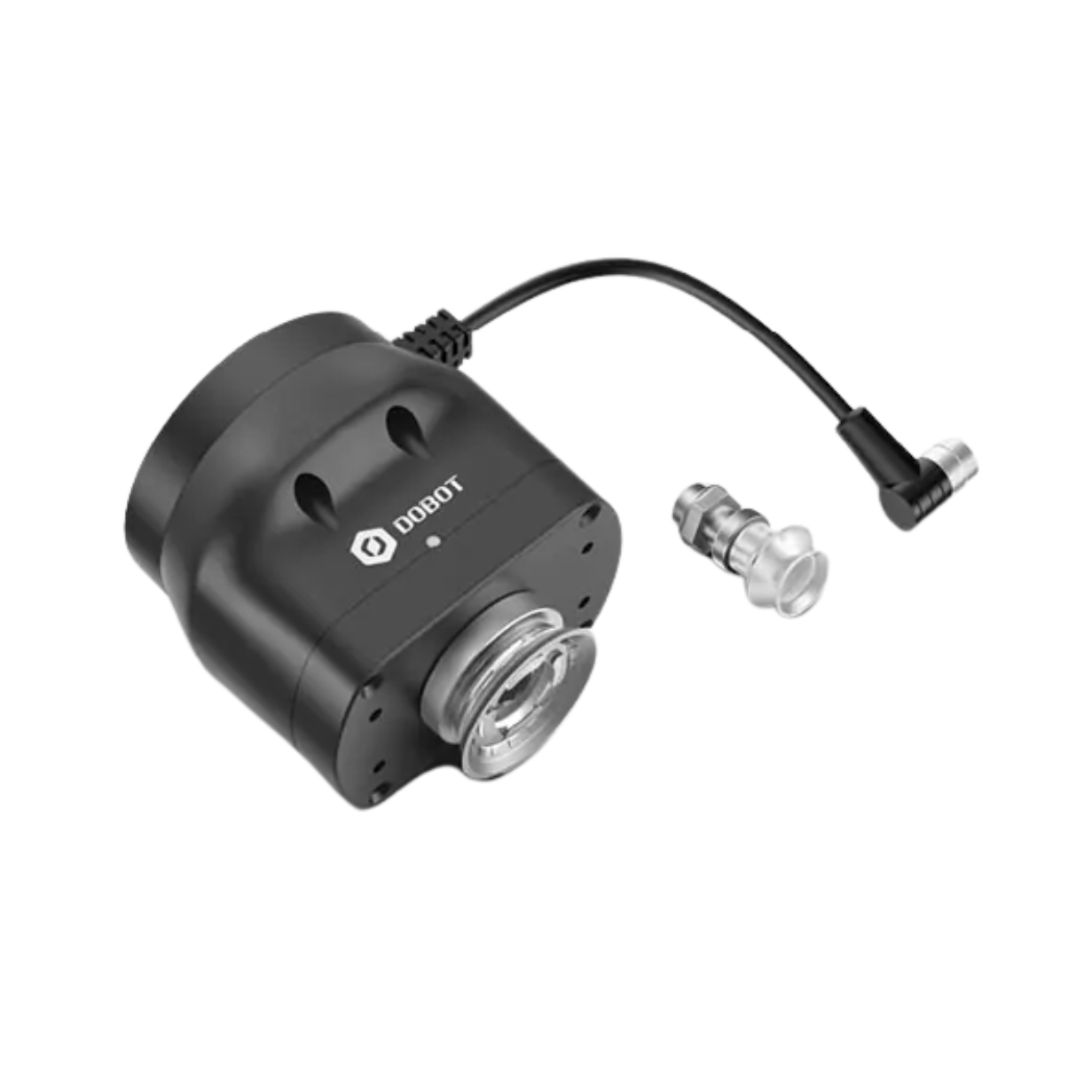

DOBOT ES01 Electric Suction Cup

DOBOT ES01 is a small electric vacuum suction cup developed specifically for Magician E6 six-axis collaborative robots.
It supports plug and play and can quickly achieve automated piece picking solutions in the field of education and research.

Categories: ,
Convenient to deploy:Adopting an integrated design, it is compatible with Magician E6 terminal aviation plugs. With the function of plug and play, it eliminates cumbersome wiring. REasy to use:The DobotStudio Pro operating platform provides direct control and Blockly block programming, making it easy to use and supporting efficient Lua script programming. Compact and user-friendly:Compact in size, no need for external air supply, low in operating noise, easily meeting teaching needs. Flexible in expansion:The suction nozzle supports quick disassembly and can be expanded to connect multiple suction nozzles, adapting to more application scenarios.



DOBOT ES01 Specifications
Specification Details
Product Model DT-ES01
External Dimensions (L*W*H) 74mm * 65mm * 65mm
Weight 250g
Maximum Load 700g
Vacuum Degree 55kPa
Maximum Air Flow 2.0L/min
Communication Mode IO
Operating Noise ≤50dB
Rated Voltage DC 24V
Rated Power 2.55W



Application Scenarios


  • Teaching simulation suitable for small component loading and unloading

  • Handling

  • Palletizing

  • Processing

  • Packaging
