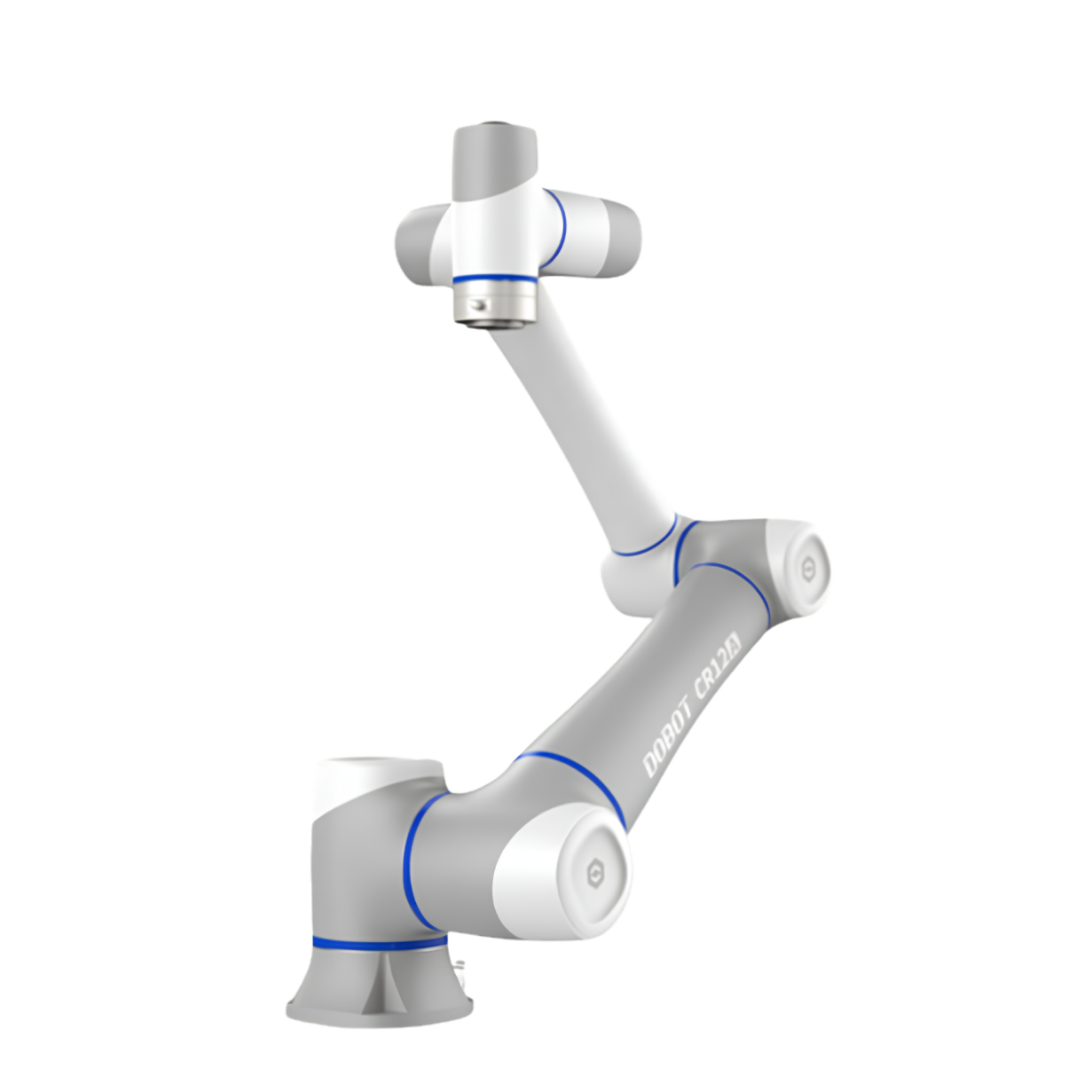

Dobot CR12 Collaborative Robot

The CR12 has a maximum payload of 12 kg and max operating speed of 4 m/s. The robot can be deployed for loading and unloading, polishing, welding and palletizing tasks to improve production efficiency in automotive, food and beverage, pharmaceutical and chemical industries.

Categories: CR Series, Dobot, Robotics

Description
Specifiations
Application
Downloads

Description

Specification

Weight	39.5 kg
Maximum Payload	12 kg
Working Radius	1200 mm
Maximum Reach	1425 mm
Rated Voltage	DC48V
Maximum Speed of TCP	4 m/s
Range of Motion	J1: ±360°
	J2: ±360°
	J3: ±160°
	J4: ±360°
	J5: ±360°
	J6: ±360°
Maximum Joint Speed	J1/J2: 120°/s
Maximum Joint Speed	J3/4/5/6: 180°/s
End-Effector I/O Interface	DI/DO/AI: 2
End-Effector I/O Interface	AO: 0
Controller I/O	Communication: RS485
	DI: 16
	DO/DI: 16
	AI/AO: 2
	ABZ Incremental Encoder: 1
Repeatability	±0.03 mm
Communication	TCP/IP, Modbus, Wi-Fi
IP Rating	IP54, Control Box IP20 (IP66 available upon choice)
Temperature	0° ~ 45° C
Power Consumption	350W
Materials	Aluminum alloy, ABS plastic

Application Scenarios

Welding

Palletizing

Loading and Unloading

Assembly

Bin Picking

Gluing

Quality Inspection

Screwdriving

Transporting
