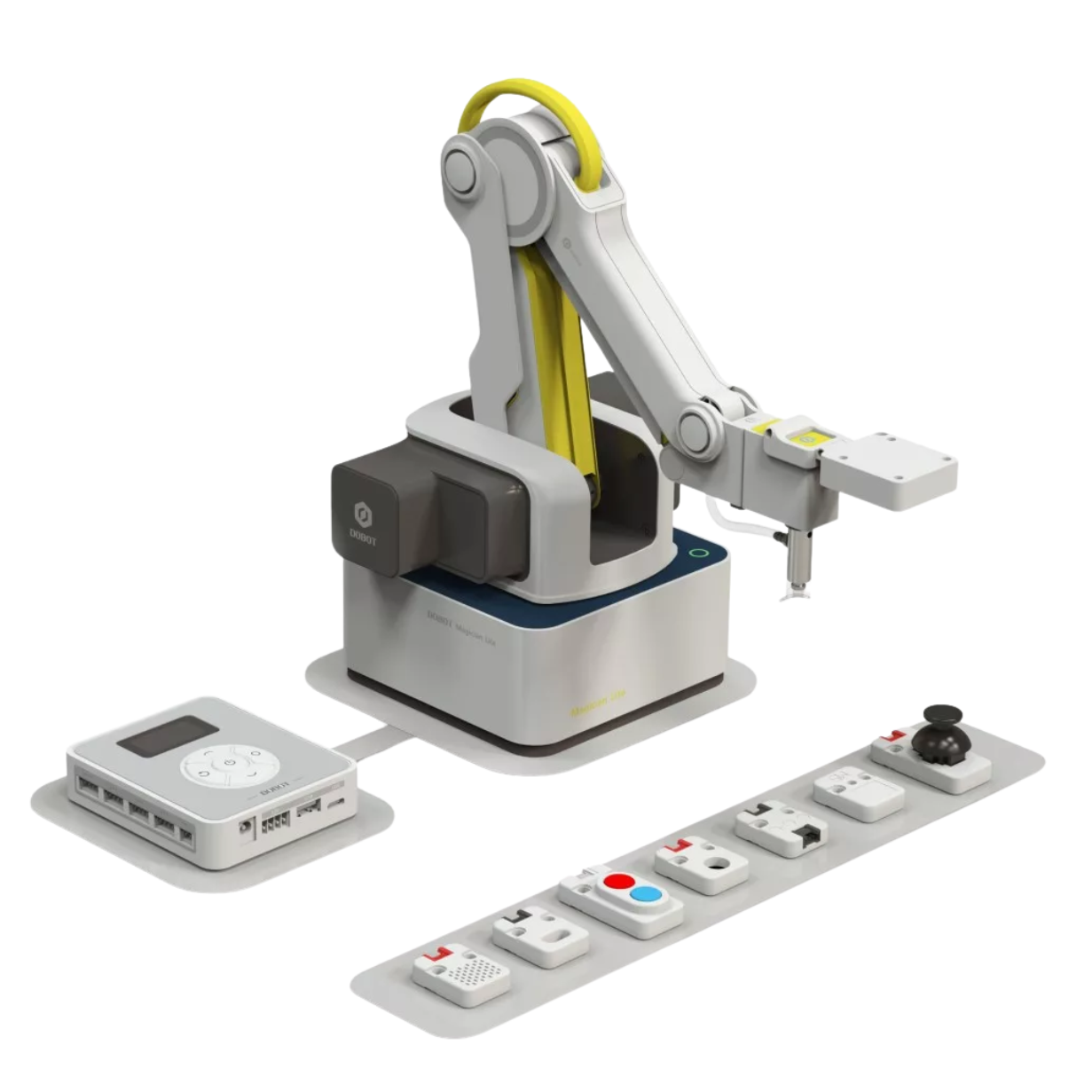

Description

**Magic Box Modules Specifications**
Module	Communication Mode	Interface	Note
Light Sensor, Knob Potentiometer, Sound Sensor	ADC	Port3/Port4	Analog Input
Joystick, Humiture Sensor, Gesture Sensor, Color Sensor	I2C	Port1~Port6	Digital Input
Micro Servo	PWM	Port3~Port6	PWM Input
LED Module	Single-bus	Port1~Port6	–
PIR Sensor, Dual Button, Photoelectric Switch	IO	Port1~Port6	General IO

**Joystick Specifications**
Specification	Details
Connection Mode	Connect to any green port of Magic Box (Port1~Port6)
Communication Mode	I2C
Wiring Cable	Universal Sensor Cable
X/Y Output Value	10 ~ 250
Z Output Value	0: release; 1: press
Voltage	5V
Current	50mA

**Dual Button Specifications**
Specification	Details
Connection Mode	Connect to any green port of Magic Box (Port1~Port6)
Communication Mode	IO
Wiring Cable	Universal Sensor Cable
Voltage	5V
Current	50mA

**PIR Sensor Specifications**
Specification	Details
Connection Mode	Connect to any green port of Magic Box (Port1~Port6)
Communication Mode	IO
Wiring Cable	Universal Sensor Cable
Detection Distance	150cm
Delay Period	2s
Induction Range	< 100°
Static Current	< 60uA
Operating Temperature	-20 ~ 80°C
Voltage	5V
Current	50mA

**Gesture Sensor Specifications**
Specification	Details
Connection Mode	Connect to any green port of Magic Box (Port1~Port6)
Communication Mode	I2C
Support Gestures	Up, Down, Left, Right, Forward, Backward, Clockwise, Counterclockwise
Effective Recognition Distance	5cm – 15cm
Voltage	5V
Current	50mA
