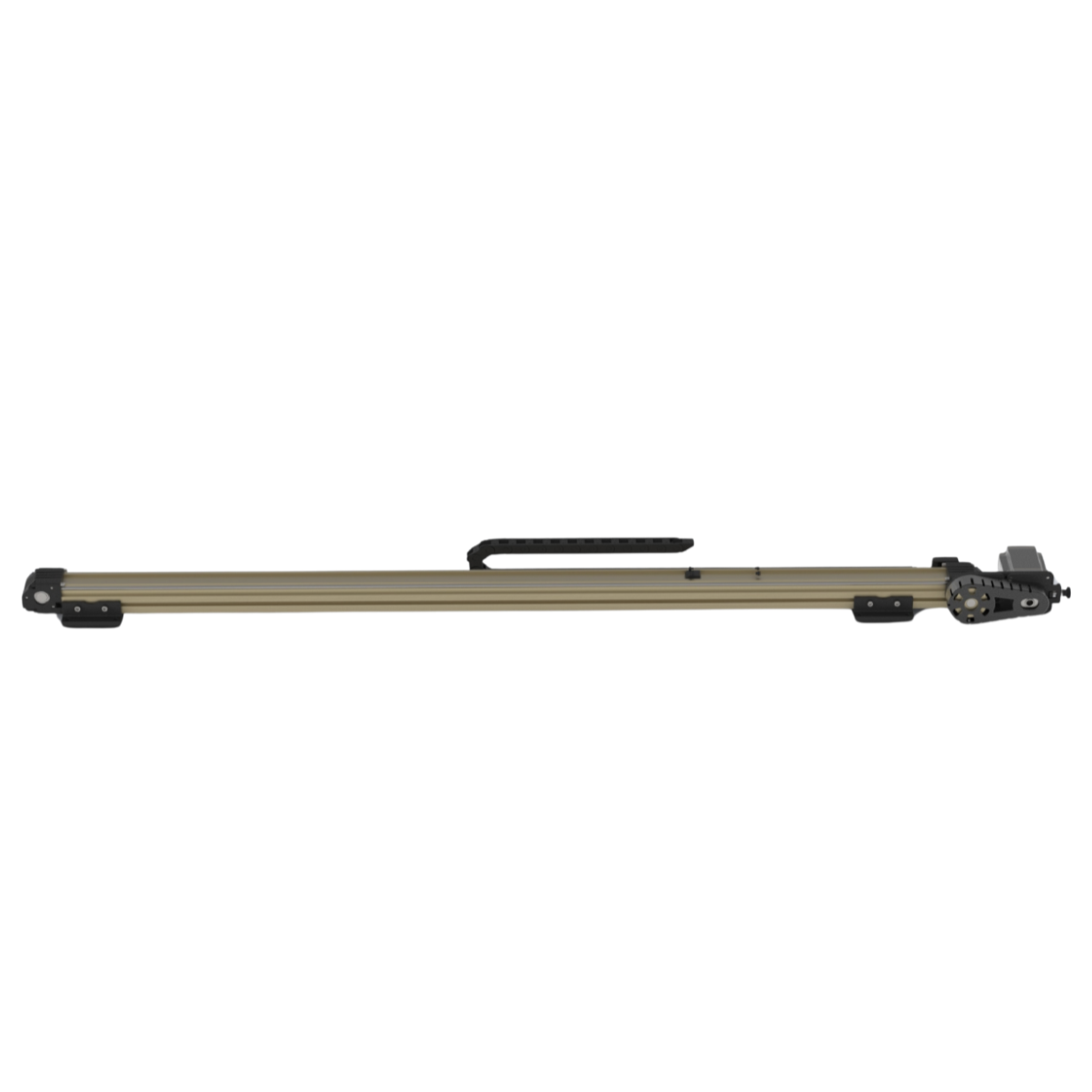

An operating range of one additional meter opens up extra opportunities for extensive scaling. With the sliding rail kit, the working space of DOBOT Magician can be fully extended to enable it to perform large-scale tasks, such as long-distance picking and placing, a more extensive range of writing, drawing, or laser engraving.
| Specification | Details |
|---|---|
| Payload | 5 kg |
| Effective Travel Distance | 1000 mm |
| Maximum Speed | 150 mm/s |
| Maximum Acceleration | 150 mm/s² |
| Repeat Positioning Accuracy | 0.01 mm |
| Absolute Positioning Accuracy | 0.25 mm |
| Net Weight | 4.7 kg |
| Weight (Including Packing) | 7.23 kg |
| Dimensions (Length × Width × Height) | 1320 mm × 120 mm × 55 mm |
