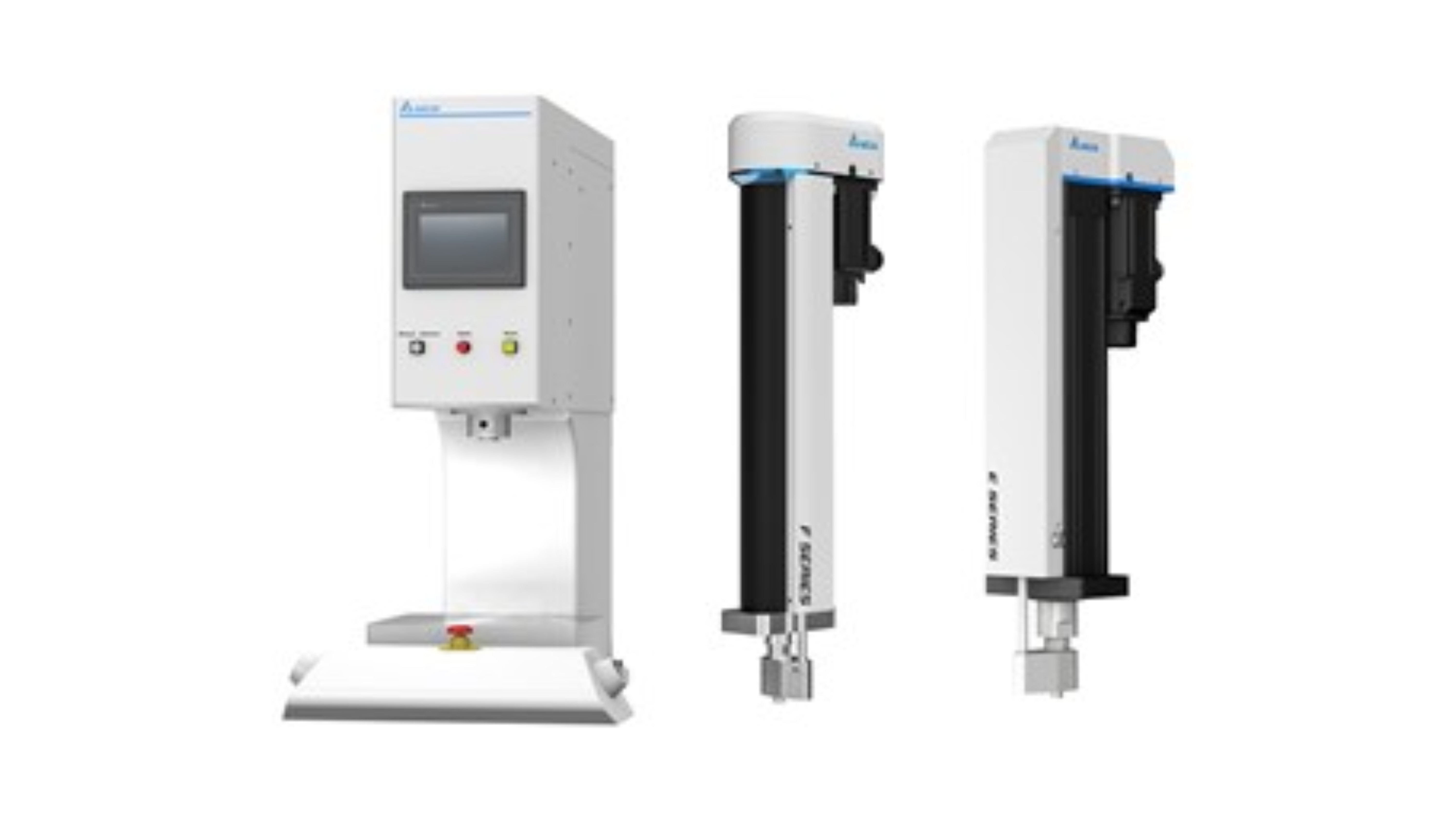

Delta Servo press

The Electric Servo Press integrates Delta’s self-developed key components such as the Human Machine Interface (HMI), Programmable Logic Controllers (PLC), servo drives and motors into the whole system, providing convenient machine maintenance and enhancing efficiency.

The Delta Electric Servo Press is a high-performance and energy-saving machine with no traditional press parts (e.g. flywheel, pneumatic cylinder, press motor, clutch, or others).The press adopts AC servo motors that propel a low-backlash ballscrew and press punch, along with sensor and control parts, to precisely adjust load and achieve high-repeatability processing quality. The machine features multiple control modes with flexible combinations to perform real-time press monitoring that not only helps reduce press yield rate and damage, but also saves cost.

Description

Delta's electronic cylinder servo press is lightweight and easy to use with a simple structure. It can be quickly integrated with users' systems for pressing in production lines. It can implement crimping of general metal parts and press complicated electronic components, automobile charging product assembly, and oil-sealing processes for industrial robots. In addition, it is high-performance and exerts flexible processes and strokes on pressing without any conventional press part (e.g. flywheel, pneumatic cylinder, press motor, clutch, or others) to enhance quality and efficiency, reduce pollution and errors caused from poor crimping, and save consumables costs. All of the key components are designed and manufactured by Delta for seamless integration, stable operation, high production efficiency and provided as a one-stop-shop service. The electric cylinder servo press can be used with equipment management platforms for data monitoring in real time and flexible changeover with smart automated production lines. It accomplishes high efficiency and energy saving for the electronics manufacturing industry and helps customers increase yield rates and competitiveness in fast-changing and diversified markets.

Specification

Model Name	AM-ESP-E001-0-D	AM-ESP-E002-0-D	AM-ESP-E005-0-D	AM-ESP-E010-0-D	AM-ESP-E030-1-D	AM-ESP-E050-1-D
Max. Press Force (kgf)	100	200	500	1,000	3,000	5,000
Force Range (kgf)	1 ~ 100	2 ~ 200	5 ~ 500	10 ~ 1,000	30 ~ 3,000	50 ~ 5,000
Min. Increment / Decrement (kgf)	0.1				1
Max. Deviation (%)	±0.5 FS^*3
Max. Stroke (mm)	100 / 200		100 / 200 / 300	100 / 200 / 300 / 400
Min. Increment / Decrement (mm)	0.001
Max. No-load Speed (mm/s)	500	30		270	200
Max. Press Speed (mm/s)	40^*4
Min. Increment / Decrement (mm/s)	0.001
Load Capacity of Press Punch (kg)	15		50		125
Repeatability of Position Control (mm)	± 0.01^*5
Power Supply	AC 220 V / 1Ø, 10 A				AC 220 V / 3Ø, 30 A
Scanning Time (ms)	< 1
Locking Method	Flange Locking
Over-press Protection	Yes
Dwell Time (hr)	> 24 hrs
Weight (kg)	12	12.5	30	33	110	125
Dimensions (L×W×H mm)	535×171.5×65		690×251×110	1,014.5×377×190
Surrounding Temperature	0 ~ 40°C
Humidity	20 ~ 90% (non-condensing)
Protection Level	IP20
HMI Language	English, Traditional Chinese, Simplified Chinese, Japanese
PC Software Language	English, Traditional Chinese, Simplified Chinese, Japanese
Unit	Force: N, kgf, lbf / Length: mm, inch

Note 1/2: Max. dimensions of different models for max. stroke length.
Note 3: FS = Full Scale
Note 4: Pressing speed is altered by pressing value
Note 5: The equipment should be operated under constant temperature and pressure to maintain the precision of press repeatability, not absolute accuracy.
Note 6: Suggested value. For specific applications, please contact Delta and distributors.
