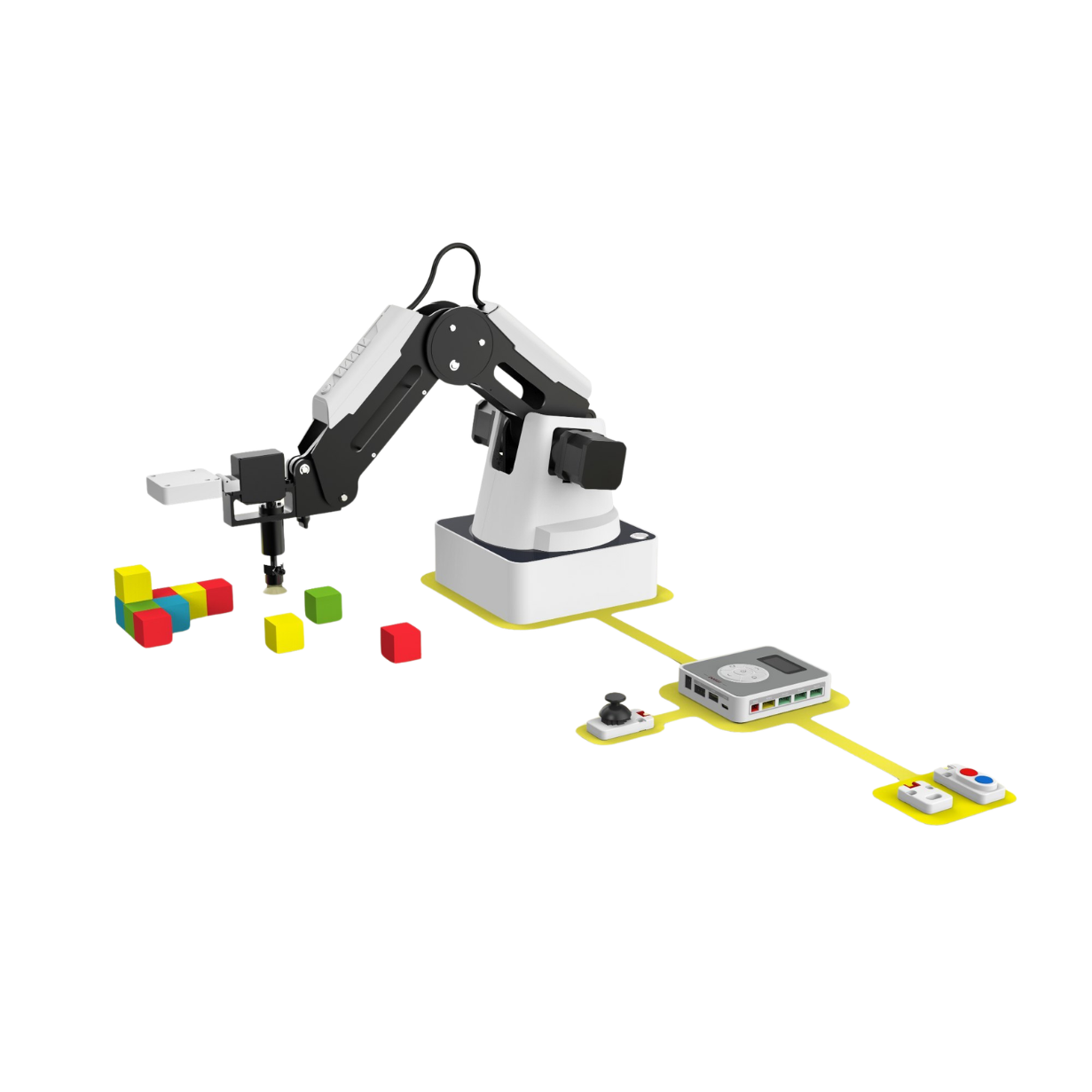

Dobot Basic AI Kit for Magician

Creating Robust Interactive Learning Environment for Students

As an entry-level learning suite for AI, Basic AI Kit for DOBOT Magician features Arduino Mega 2560 control board, LED indicator, joystick, switch button, and voice and visual recognition modules. We provide plentiful courses to help students handle the robot arm via programming and easily get the basic knowledge of AI, thus cultivating their innovative thinking and developing a creative robotic culture.

Description

Explore Machine Intelligence via Human-machine Interaction Abundant electronic modules include a programmable control board, various sensors, voice, and visual recognition. Control the lights and DOBOT Magician by button, joystick, and voice recognition to help students explore artificial intelligence in every aspect. Smart Play Technology in Open Source Electronic Platform Compatible with Mixly, Arduino-related peripheral sensors, and others, Open Source Electronic Platform supports secondary development controlled by Arduino. The innovative technologies inspire students in the open-source software and hardware platform to create independent projects and gain new knowledge in programming. Becoming a Creative Problem-Solver in Engineering Building a Dobot remote controller using programming can turn students' creative ideas into reality and help them learn circuits and programming at the same time.

Specification

Module Overview
Module	Communication mode	Interface	Note
Light sensor, Knob potentiometer, Sound sensor	ADC	Port3/Port4	Analog input
Joystick, Humiture sensor, Gesture sensor, Color sensor	I2C	Port1~Port6	Digital input
Micro servo	PWM	Port3~Port6	PWM input
LED module	Single-bus	Port1~Port6	–
PIR sensor, Dual button, Photoelectric switch	IO	Port1~Port6	General IO

Joystick
Connection mode	Connect to any green port of Magic Box (Port1~Port6)
Communication mode	I2C
Wiring Cable	Universal Sensor Cable
X/Y output value	10 ~ 250
Z output value	0: release; 1: press
Voltage	5V
Current	50mA

Dual Button
Connection mode	Connect to any green port of Magic Box (Port1~Port6)
Communication mode	IO
Wiring Cable	Universal Sensor Cable
Voltage	5V
Current	50mA

PIR Sensor
Connection mode	Connect to any green port of Magic Box (Port1~Port6)
Communication mode	IO
Wiring Cable	Universal Sensor Cable
Detection distance	150cm
Delay period	2s
Induction range	< 100°
Static current	< 60uA
Operating temperature	-20 ~ 80°C
Voltage	5V
Current	50mA

Gesture Sensor
Connection mode	Connect to any green port of Magic Box (Port1~Port6)
Communication mode	I2C
Support gestures	Up, down, left, right, forward, backward, clockwise, counterclockwise
Effective recognition distance	5cm – 15cm
Voltage	5V
Current	50mA

DFRobot Mega2560 V3
Microcontroller	ATmega2560
Operating Voltage	5V
Input Voltage (recommended)	7V – 12V
Input Voltage (range)	6V – 20V
Digital I/O Pins	54 (of which 15 provide PWM output)
Analog Input Pins	16 I/O
DC Current per I/O Pin	50 mA
DC Current for 3.3V Pin	50 mA
Flash Memory	256 KB (4KB used by bootloader)
SRAM	8 KB
EEPROM	4 KB
Clock Speed	16 MHz

Pixy CUMcam5
Processor	NXP LPC4330, 204MHz, dual-core
Image Sensor	Omnivision OV9715, 1/4″, 1280×800
Image Sensor FOV	75° horizontal, 47° vertical
Lens Type	Standard M12
Power Consumption	140 mA
Power Input	USB Input (5V) or unregulated input (6V to 10V)
RAM	264 K bytes
Flash	1M bytes
Available Outputs	UART serial, SPI, I2C, USB, digital, analog
Size	2.1″ x 1.75″ x 1.4″

Digital Button Module & LED
Keycap Color	Red, Green, Blue
Supply Voltage	3.3V ~ 5V
Data Type	Digital
Size	22 mm x 30 mm
LED Brightness	2500 mcd to 3300 mcd Highlight
LED Voltage	3.3V ~ 5V
LED Wavelength	520 nm – 530 nm
LED Angle	80° – 110°
LED Size	30 mm x 20 mm
LED Weight	5 g

Voice Module (English)
Voltage	3.3V ~ 5V
Current	3.3V≤25.26mA, 80mA@playing; 5V≤25.26mA, 130mA@playing
Working Temperature	0-85 °C
Identification Items	22
Microphone	Omnidirectional, SNR: 55dB, sensitivity min = -42dB, typical = -40, max = -37dB
Size	40 × 20 mm
Weight	5 g
