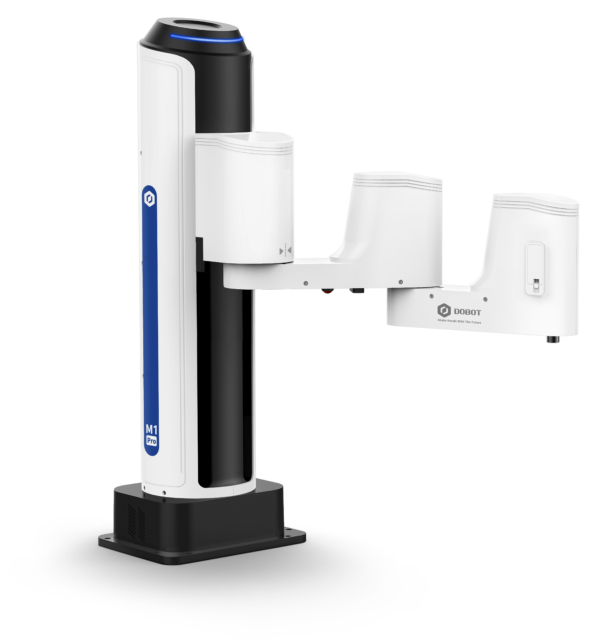

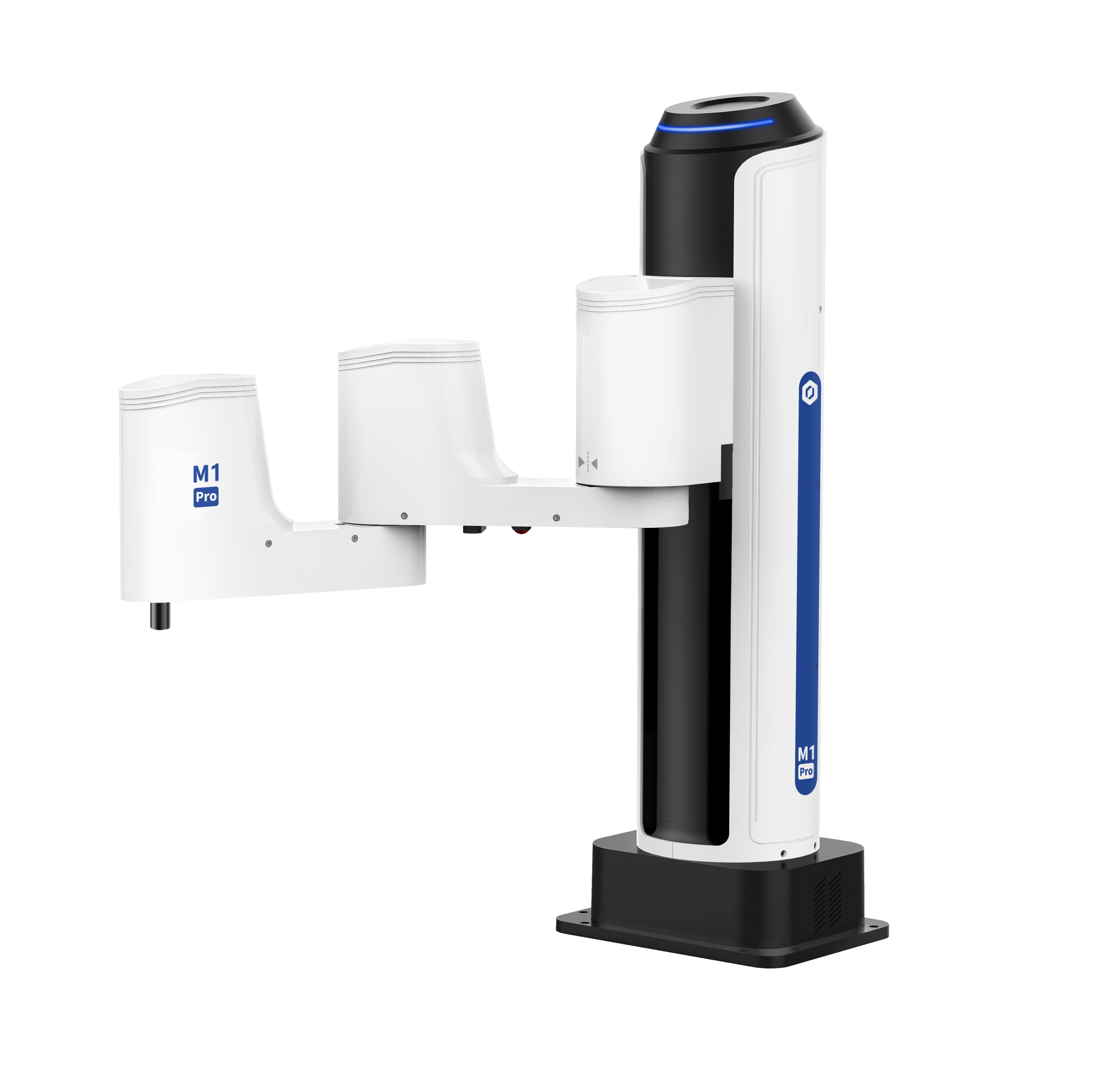

The M1 Pro builds inherits and advances the capabilities of the M1, and integrates Dobot’s cutting edge software and hardware platforms, making it ideal for the manufacturing needs of the light industry as it can perform even more complicated tasks.
The M1 Pro has an all-in-one compact design that integrates the control box and removes the need for additional wiring. With plug-and-play capability and high portability, the M1 Pro saves on setup time.
Equipped with collision detection feature for human machine collaboration. Its forearm is 40% narrower than a traditional industrial robotic arm which significantly reduces accidental bumping into and damaging the robot.
Calibration is greatly simplified with scripting and graphical programming, wired and wireless connections to PCs, tablets, smartphones and other terminal devices.
Added encoder interface supports dynamic grabbing and tracking functionalities, multithread and on the fly IO controls to reduce motion cycle time.
| Specification | Value |
|---|---|
| Weight | 15.7 kg |
| Maximum Payload | 1.5 kg |
| Working Radius | 400 mm |
| Repeatability | ±0.02 mm |
| Rated Voltage | 100 ～ 240V AC, 50/60 Hz |
| Range of Motion – J1 | ±85° |
| Range of Motion – J2 | ±130° |
| Range of Motion – J3 | 5 mm ~ 245 mm |
| Range of Motion – J4 | ±360° |
| Maximum Joint Speed – J1 | 180°/s |
| Maximum Joint Speed – J2 | 180°/s |
| Maximum Joint Speed – J3 | 1000 mm/s |
| Maximum Joint Speed – J4 | 1000°/s |
| Communication Interface | TCP/IP, Modbus TCP, Modbus RTU |
