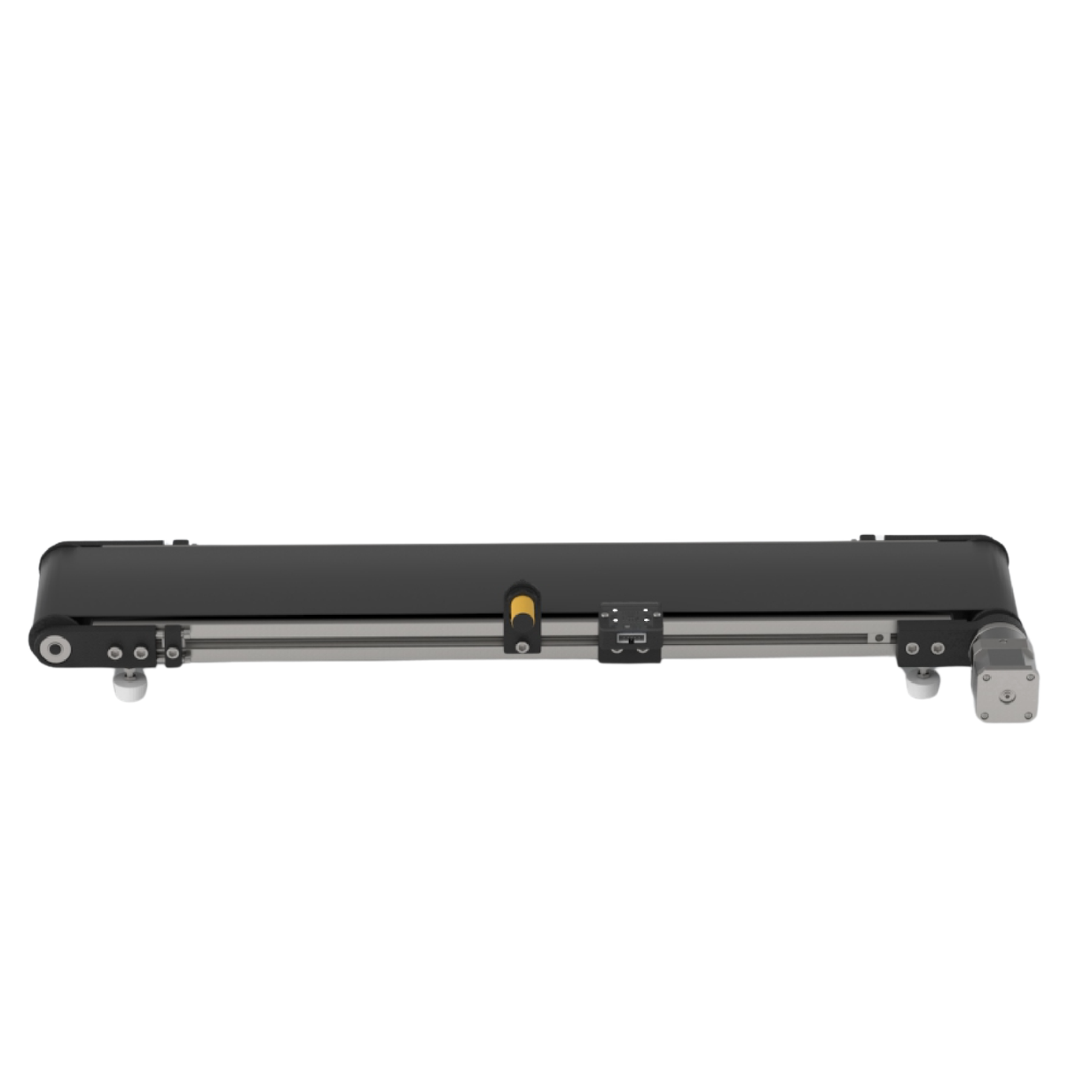

Dobot Mini Conveyor Belt Kit

DOBOT Conveyor Belt Kit: Stepping into a Production Line Simulation Universe

The Conveyor Kit for DOBOT Magician makes it possible to obtain a complete simulated production line. The powerful and programmable DOBOT Magician, combined with the adjustable speed, distance, and color sensor conveyor belt, is a perfect tool for creating a highly effective simulat

Description

Conveyor Belt as a Core Component A mini conveyor belt is a core component for building an automation process with your robotic arm. It is adaptable to multiple educational needs, enabling you to train your skills in a production assembly line.Photoelectric Switch Facilitates Object Detection Detect whether there are objects in front of the photoelectric switch as it helps improve the quality and the speed of the object detection.Color Sensor Detection on the Surface An easy-to-use color sensor for you to categorize red, blue, and green objects. Do not need to give the robotic arm a hint of the color. With the help of color sensor technology, DOBOT Conveyor Belt Kit will scan and identify them fast.Interactive Foam Blocks These colorful foam blocks are easy to grab, move, and pile. It is the most suitable material for getting a grip on the automation process.

Specification

Specifications

Specification

Details

Payload

500 g

Effective Delivering Distance

600 mm

Maximum Speed

120 mm/s

Maximum Acceleration

1100 mm/s²

Net Weight

4.2 kg

Weight (Including Packing)

5.34 kg

Dimension

700 mm × 215 mm × 60 mm

Distance Measuring Sensor Unit Specifications

Specification

Details

Measurable Range

20 ~ 150 mm

Signal

Analog Output

Input

4.5 – 5.5 V

Color Recognizing Sensor Unit Specifications

Specification

Details

Input

3 ~ 5 V

Description

**Specifications**
Specification	Details
Payload	500 g
Effective Delivering Distance	600 mm
Maximum Speed	120 mm/s
Maximum Acceleration	1100 mm/s²
Net Weight	4.2 kg
Weight (Including Packing)	5.34 kg
Dimension	700 mm × 215 mm × 60 mm
