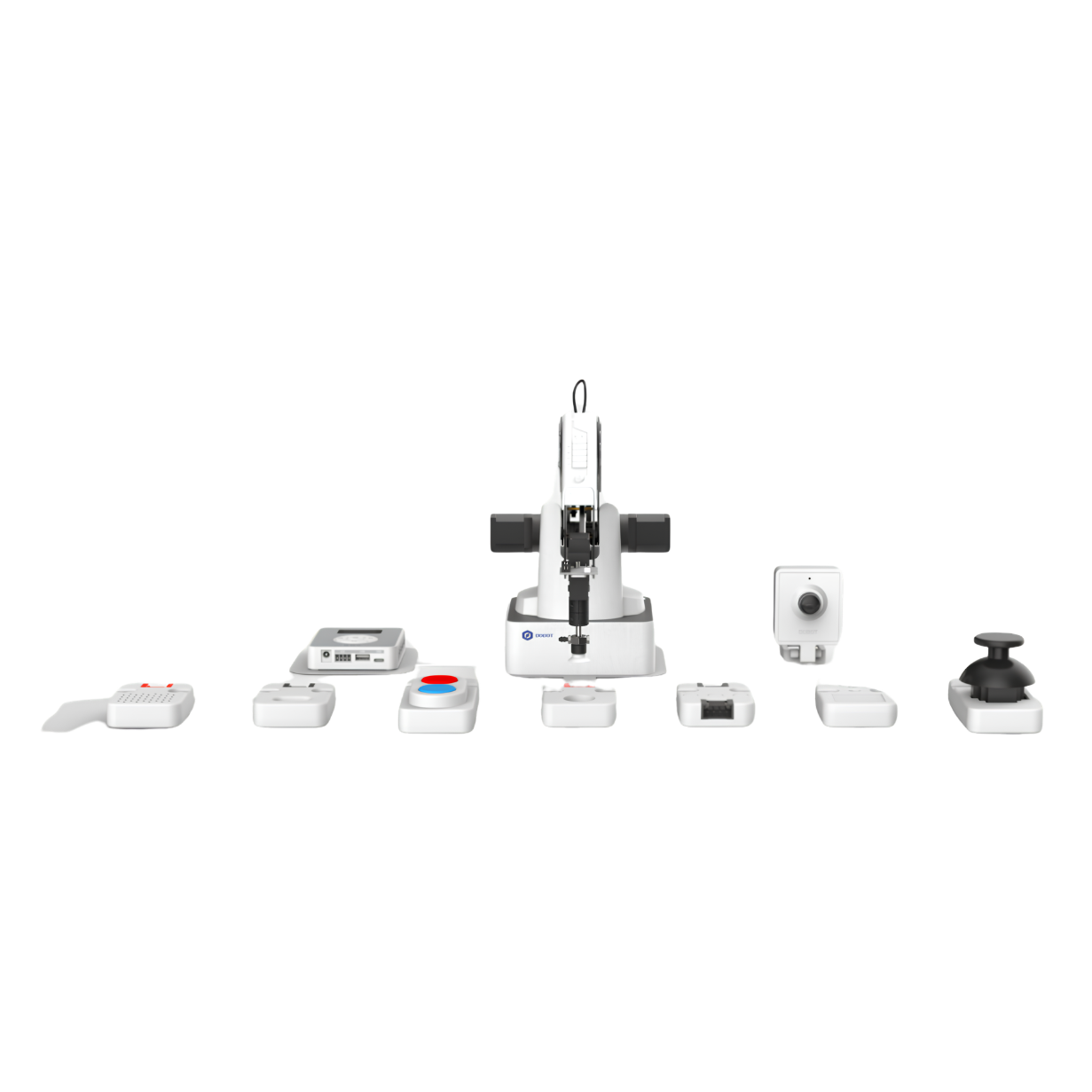

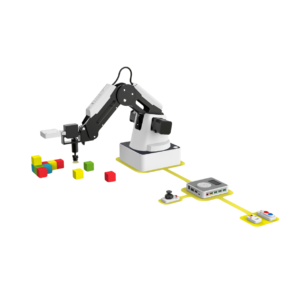

Description

**Module Specifications**
Module	Communication Mode	Interface	Note
Light Sensor, Knob Potentiometer, Sound Sensor	ADC	Port3/Port4	Analog Input
Joystick, Humiture Sensor, Gesture Sensor, Color Sensor	I2C	Port1~Port6	Digital Input
Micro Servo	PWM	Port3~Port6	PWM Input
LED Module	Single-bus	Port1~Port6	–
PIR Sensor, Dual Button, Photoelectric Switch	IO	Port1~Port6	General IO

**Joystick Specifications**
Specification	Details
Connection Mode	Connect to any green port of Magic Box (Port1~Port6)
Communication Mode	I2C
Wiring Cable	Universal Sensor Cable
X/Y Output Value	10 ~ 250
Z Output Value	0: release; 1: press
Voltage	5V
Current	50mA

Dual Button Specifications
Specification	Details
Connection Mode	Connect to any green port of Magic Box (Port1~Port6)
Communication Mode	IO
Wiring Cable	Universal Sensor Cable
Voltage	5V
Current	50mA

**PIR Sensor Specifications**
Specification	Details
Connection Mode	Connect to any green port of Magic Box (Port1~Port6)
Communication Mode	IO
Wiring Cable	Universal Sensor Cable
Detection Distance	150cm
Delay Period	2s
Induction Range	< 100°
Static Current	< 60uA
Operating Temperature	-20 ~ 80°C
Voltage	5V
Current	50mA

**Gesture Sensor Specifications**
Specification	Details
Connection Mode	Connect to any green port of Magic Box (Port1~Port6)
Communication Mode	I2C
Support Gestures	Up, Down, Left, Right, Forward, Backward, Clockwise, Counterclockwise
Effective Recognition Distance	5cm – 15cm
Voltage	5V
Current	50mA

**Photoelectric Sensor Specifications**
Specification	Details
Connection Mode	Connect to any green port of Magic Box (Port1~Port6)
Communication Mode	IO
Wiring Cable	Already attached
Value Range	0 (no shield), 1 (with shield)
Standard Detection Environment	Sunlight less than 10000LX, Incandescent lamp less than 3000LX
Object to be Detected	Transparent or opaque object
Operating Temperature	-25°C~ 55°C
Response Time	<2ms

**Sound Sensor Specifications**
Specification	Details
Connection Mode	Connect to any green port of Magic Box (Port3~Port4)
Communication Mode	ADC
Wiring Cable	Universal Sensor Cable
Value Range	0-1023
Sensitivity	(48dB至52dB) @1kHz
Microphone Impedance	2.2k ohms
Microphone Frequency	16-20 kHz
SNR S/N
