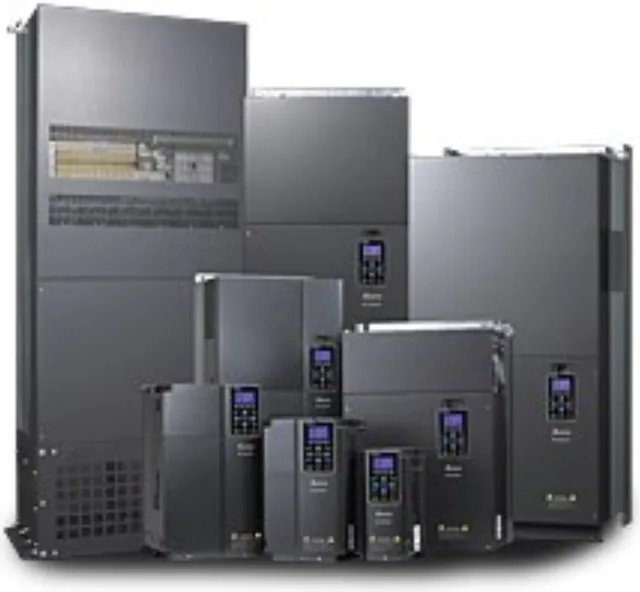

Delta C2000 Plus Vector AC Drive
The C2000 Plus Series features precise speed, torque and position control functions that are suitable for both sensor and sensorless synchronous / asynchronous motors.
- Supply, integration & commissioning
- Local support
- Coimbatore · Bangalore · Chennai
Delta C2000 Plus Vector AC Drive: technical details
With higher overload capacity, the power range of the C2000 Plus Series can reach up to 560 kW, providing the best performance and stability for a variety of heavy duty and constant torque applications, such as production, processing, food industry, chemical industry, metal processing, rubber and plastics, municipal & infrastructure, and other industries.
Power range: 230V 0.75~90kW, 460V 0.75~630kW
| 230V (kW) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 | 90 | |||||
| 230V (HP) | ||||||||||||||||||||
| 1 | 2 | 3 | 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 75 | 100 | 125 | |||||
| Frame Size | ||||||||||||||||||||
| A | A | B | C | D | E | F | ||||||||||||||
| 460V (kW) | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.75 | 1.5 | 2.2 | 3.7 | 4.0 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 | 160 | 185 | 200 | 220 |
| 460V (HP) | ||||||||||||||||||||||
| 1 | 2 | 3 | 5 | 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 75 | 100 | 125 | 150 | 175 | 215 | 250 | 270 | 300 |
| Frame Size | ||||||||||||||||||||||
| A | B | C | D0 | D | E | F | G | H | ||||||||||||||
Power range: 575V 1.5~15kW, 690V 18.5~630kW
| 575V (kW) | ||||||
|---|---|---|---|---|---|---|
| 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 15 |
| 575V (HP) | ||||||
| 2 | 3 | 5 | 7.5 | 10 | 15 | 20 |
| Frame Size | ||||||
| A | B | |||||
| 690V (kW) | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18.5 | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 | 160 | 200 | 250 | 315 | 400 | |
| 690V (HP) | |||||||||||||||
| 25 | 30 | 40 | 50 | 60 | 75 | 100 | 125 | 150 | 175 | 215 | 270 | 335 | 425 | 530 | |
| Frame Size | |||||||||||||||
| C | D | E | F | G | H | ||||||||||
Specifications are from Delta Electronics and may change. Ask us for the latest datasheet, price and availability.
More than a supplier
From Coimbatore, Bangalore and Chennai we help you choose, install and run the right product, and support it after go-live.
Selection & sizing
The right model and rating for your load, duty cycle and budget.
Programming & commissioning
PLC, HMI, drive and servo programming with on-site start-up.
Control panels
Panels designed, wired and tested in-house around Delta products.
Local support
Engineers, service and spares from three South Indian offices.
You may also need
Delta MS300 Compact Vector AC Drive
Delta’s MS300 series is a standard compact vector control drive that inherits Delta’s superior drive technology.
View details →
Delta ME300 Compact AC Drive
Delta’s ME300 Series is a new generation compact vector control drive that inherits Delta’s superior drive technology…
View details →
Delta CP2000 AC Drive for Fans & Pumps
Delta’s Sensorless Vector Control Drive CP2000 Series has extended the idea of energy saving and uses this principal as…
View details →

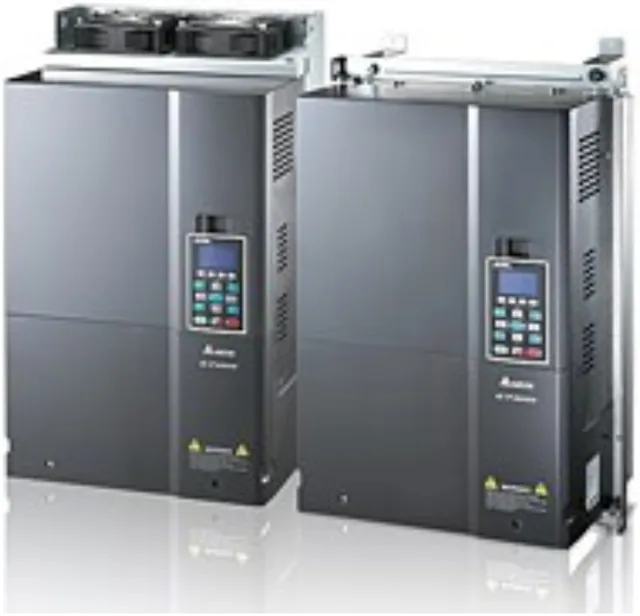

Delta CT2000 Drive for Textile & Harsh Sites
